Product parameters

Power supply: AC110-240V, 50/60Hz

Total power: 500W

Light source: Original Osram 371

Dimming: 0-100% linear adjustment

Strobe: Dual chip strobe (0.5-9 times/second)

Focusing: Linear focusing

Zoom: Linear zoom

Beam angle: 2-8 degrees

Pattern angle: 8-60 degrees

Prism angle; 10-60 degrees (zoom)

Optical lens: high-precision laminated optical lens combination

1:1 fixed color palette, 13 colors+white light,

Rainbow effect speed adjustable, half step color effect

Color 2: Six color chips combined with prisms and patterns to achieve a rainbow effect

Fixed pattern plate 1:1, 15 patterns+white light,

Bidirectional variable speed rotation

Fixed Image 2: White Light+5 Patterns+Water Pattern

Rotating disc: 1 rotating pattern disc, 7 replaceable pattern discs+white light

The pattern flows back and forth from slow to fast

Prism disk: 8 prisms+6 rows of mirrors (non stackable)

Prism dynamic effect, can switch between forward and reverse rotation effects,

Can be linearly enlarged

XY axis motor, ultra quiet, ultra high speed three-phase motor

Horizontal scanning: 540 degrees (160 bit precision scanning) with electronic error correction

Vertical scanning: 270 degree (160 bit precision scanning) electronic error correction

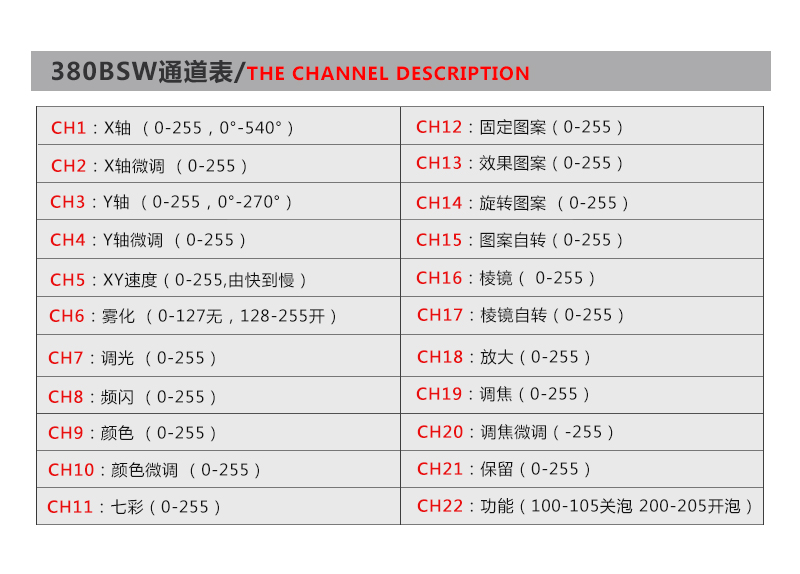

Channel mode: 22 or 16 channel modes

Display: Color touch screen display

Motherboard: Silent intelligent motherboard with RDM function

Lamp size (L × W × H): 390 × 320 × 680mm

Packaging size (L × W × H): 550 × 480 × 630mm

Gross weight: 21.1kg

Net weight: 22.5kg
