Product parameters

Voltage: 210V~230V/50~60Hz,

Light source power: Japan Phoenix 300W

Whole lamp power: 420W

Ballast: electronic ballast

Theoretical light source lifespan: 2000H

Color temperature: 8000K

Color: With 10 colors+white light+CTO color temperature film, it can achieve a half color rainbow effect,

You can also rotate the rainbow effect in both directions!

Colorful: Independent Colorful Beam Effect, Independent Colorful Prism Effect, Clear and Vibrant!

Pattern: With 14 fixed pattern pieces, it comes with pattern shaking and spinning!

Prism: Double prism design: one 8-prism honeycomb and one diamond prism, stackable

Cooling fan: Equipped with a temperature sensor, the temperature of the lamp body increases, and the fan speed accelerates! Conversely, run at a reduced speed!

Control motherboard: imported driver chip, built-in lamp fault detection function, fan shutdown control, configured RDM function!

Atomization: Independent atomization effect, or optional rainbow prism effect,

Strobe: Dual chip strobe (0.3-13 times/second)

Aperture: Secondary beam adjustment

Display: 2.8-inch touch LCD display, reversible 180 ° display.

Lens: High precision large aperture combination optical lens, diameter 140CM, thick beam column, strong beam sensitivity

Focusing: 0-100% mechanical adjustment (supports mechanical strobe and adjustable strobe effects, supports strobe macro function)

Scanning range: 540 degrees on the X-axis, 270 degrees on the Y-axis (resolution 8Bit/16Bit)

Beam angle: Lens group optical system, electric focusing, parallel beam angle 0-2 °

Motor: 3-phase ultra quiet motor, 16 bit drive

Adopting a photoelectric reset system, it can automatically retrieve the reset in case of accidental misoperation.

Overheating protection.

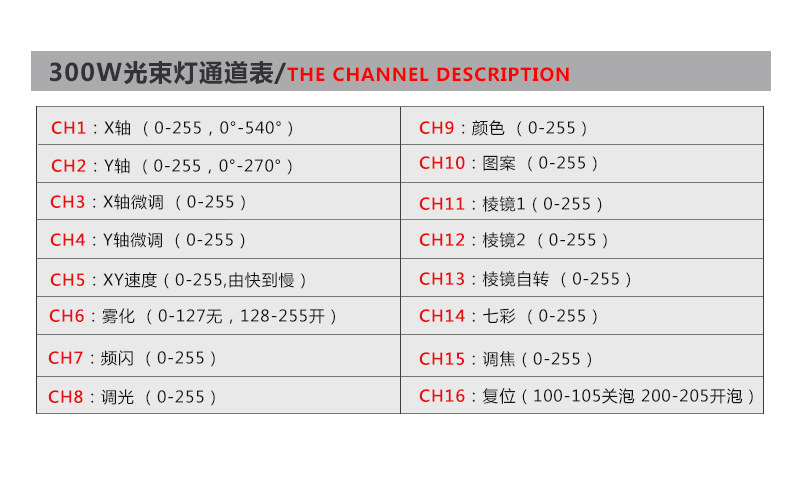

Number of channels: 16 channels

Control mode: International standard DMX, master-slave mode

Shell: Made of fire-resistant and high-temperature resistant materials!

Other functions: Remote control of bulb switch function, display of lamp and bulb usage time

Control panel bubble opening value: 200~205

Control panel bubble extinguishing value: 100~105

Automatically reduce the power of the light source when the mechanical light is turned off to protect the lamp and make it more stable

Product size: (length 38 * width 31 * height 55) CM

Net weight of product: 15.0KG

Carton packaging weight: 16.5KG
